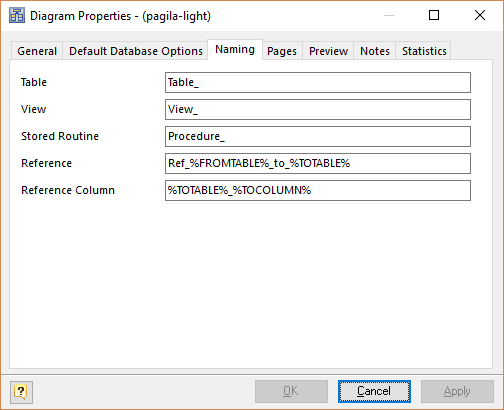

This tab helps you to set the patterns for newly created objects.
Table
Set the naming pattern for newly created tables. Default is "Table_". Number will be automatically added to the end, e.g. "Table_04".
View
Set the naming pattern for newly created views. Default is "View_". Number will be automatically added to the end, e.g. "View_12".
Stored Routine
Set the naming pattern for newly created stored routines. Default is "Procedure_". Number will be automatically added to the end, e.g. "Procedure_01".
Reference
Set the naming pattern for newly created references. Such format specifiers may be applied:
%FROMTABLE% - the argument is the referencing table name;
%TOTABLE% - the argument is the referenced table name.
Reference Column
Set the naming pattern for newly created referenced columns. Such format specifiers may be applied:
%TOTABLE% - the argument is the referenced table name;
%TOCOLUMN% - the argument is the referenced column name in the referenced table.
