Object Groups

Top Previous Next

Object Groups are the way to add more organization to your diagram. They allow to group several diagram objects to single Object Group. All objects in this group will be moved with group. You can also delete whole group with or without all its objects.

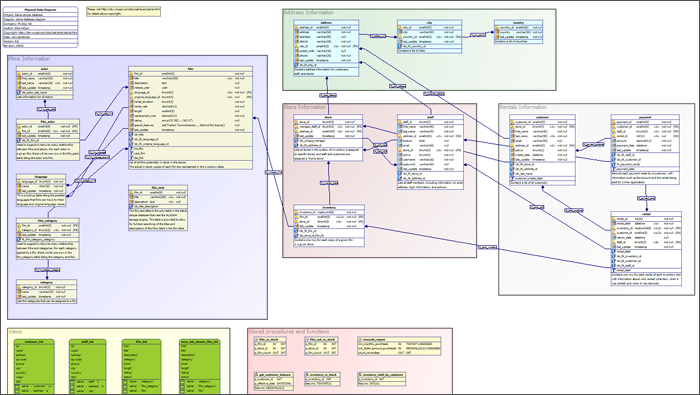

Here is an example of Object Groups usage. This is a sample diagram of "Sakila Database" available at http://dev.mysql.com/doc/sakila/en/sakila.html


Please note:
The "Sakila Database" diagram is placed in the sakila-database-diagram.mdd file shipped with the program.

There are 6 Object Groups created within this diagram to join tables and other objects into logical groups:

Films information
7 tables with different kind of information about films.

Address information
3 tables with information about stores and customers addresses.

Store information
3 tables with information about stores and staff.

Rentals information
3 tables with customers, rental orders and payment information.

7 views with different kinds of queries.

Stored procedures and functions
6 stored procedures and functions to perform different actions with database information.

Please note:
Object Groups do not affect physical database structure. It is only a way to organize diagram object. Object Groups are not used when generating database structure.

Object Groups are displayed as semi-transparent rectangles on diagram. Group's name is displayed in left-upper corner of semi-transparent rectangle. You can adjust Object Group transparency and color with Object Group Editor.

Font size of Object Group name is independent on current diagram scale. So you can see Object Group name even when you use small scales (for example 33%) to observe or move a lot of diagram objects simultaneously.

Object Group size rectangle on diagram is adjusted automatically to fit all objects attached to this group. You can also change Object Group size using resize markers, available when group is selected. You can also move group (with all its diagram objects) like any other object. And you can move diagram objects inside Object Group without any restrictions.

Object Groups are also displayed as bold frames on Minimap Navigator.


With Database Designer for MySQL you can:

Create Object Groups;

Edit Object Groups;

Add and Delete diagram objects to/from Groups;

Delete Object Groups with or without containing objects.

See also:
Interface User Guide: Minimap Navigator
Diagram: Selecting and Moving Objects | Zooming a Diagram
Diagram Objects: Creating an Object Group | Object Group Editor | Adding/Deleting objects to/from Group | Deleting Object Groups
